In aerospace manufacturing, ±0.005 mm (0.0002 in) or higher tolerance is a standard requirement. Achieving this precision depends on advanced 5-axis equipment, precise tooling, optimized CAM strategies, and rigorous quality control. This article explains practical approaches, includes a real-world case, and introduces a concise Mid Solution strategy for aerospace parts.
1. Why ±0.005 mm Tolerance Matters
Flight-critical parts: Blade platforms, valve mating surfaces.
Thin-wall structures: Less than 1 mm thick, prone to thermal distortion.
Multi-feature components: Housings or brackets with dozens of features need consistent datum references.
OEMs in Europe and the US often specify ±0.005 mm tolerances for dimensions, geometric features, and positional accuracy.
2. Achieving ±0.005 mm in Production
2.1 5-Axis CNC Capability
High-precision aerospace machining relies on:
Linear axis repeatability <= ±0.001 mm
Rotary axis accuracy <= 3 arc-sec
On-machine metrology (Renishaw probes, laser tool measurement)
Long-term repeatability is more important than occasional sample precision.
2.2 Tool Management
Spindle runout <= 2 µm
2.3 CAM Strategy
Single-clamp 5-axis machining reduces datum errors
Semi-finishing ensures uniform stock allowance
Thin-wall parts use segmented machining and constant cutting paths
3. Quality Control for Consistency
3.1 Precision Inspection
Aerospace-grade CMM (MPE <= 1.7 + L/350 µm)
FAI / AS9102 / PPAP documentation
3.2 Environmental Control
Temperature-controlled room 20 ± 0.5℃
4. Advantages of 5-Axis Machining for Aerospace Parts

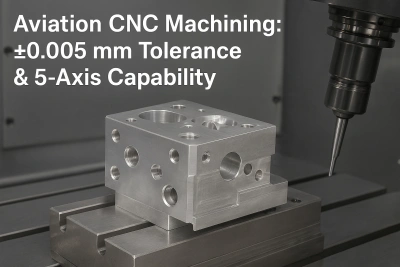

5. Case Study: Aerospace Valve Block Achieving ±0.005 mm
Material: 17-4PH stainless steel
Tolerances: ±0.005 mm for hole positions
Single-clamp 5-axis machining for all critical features
Tool runout <= 2 µm for precision finishing
Segmented semi-finishing with constant cutting paths
On-machine probing and thermal compensation
Hole position accuracy ±0.003–0.004 mm
100-piece batch with zero rework
Supplier approved for long-term aerospace production
This demonstrates how systematic planning and 5-axis capability turn ±0.005 mm tolerances into reliable batch results.
6. Mid Solution: Practical Aerospace Strategy
One-Datum 5-Axis Flow – Consolidates critical features into a single coordinate system, minimizing positional drift.
Uniform Stock Semi-Finish – Maintains consistent stock allowance for thin-wall and deep cavity parts to reduce deformation.
– Predefined templates for tool life, material, and feature strategy ensure consistent results.
On-Machine Metrology Loop – Real-time probing with thermal compensation reduces batch variation, especially for titanium or Inconel parts.
These strategies turn aerospace CNC precision from experience-based to .
7. Conclusion
Achieving ±0.005 mm tolerance in aerospace CNC machining requires a complete system:
High-end 5-axis equipment
Combined, these practices ensure repeatable, high-precision aerospace components suitable for European and US OEM requirements.
